Atari VCS 2600 Joystick Micro Switch Mod.
In this gallery we’ll see how to modify an old Atari Joystick for improved game play. The old switches tend to stop working , and had to be replaced with modern micro “click” switches.
You’ll need about 5 micro Switches (about 4mm height), something to cut and of course a soldering iron. Reichelt.de is selling them for ~ 0.2€ /piece
We need to cut some plastic from the joystick to make room for the new switches , as they use ~3mm more space.
These new switches breathe new life in this joystick.
Now you’re in control, not the joystick anymore 😉

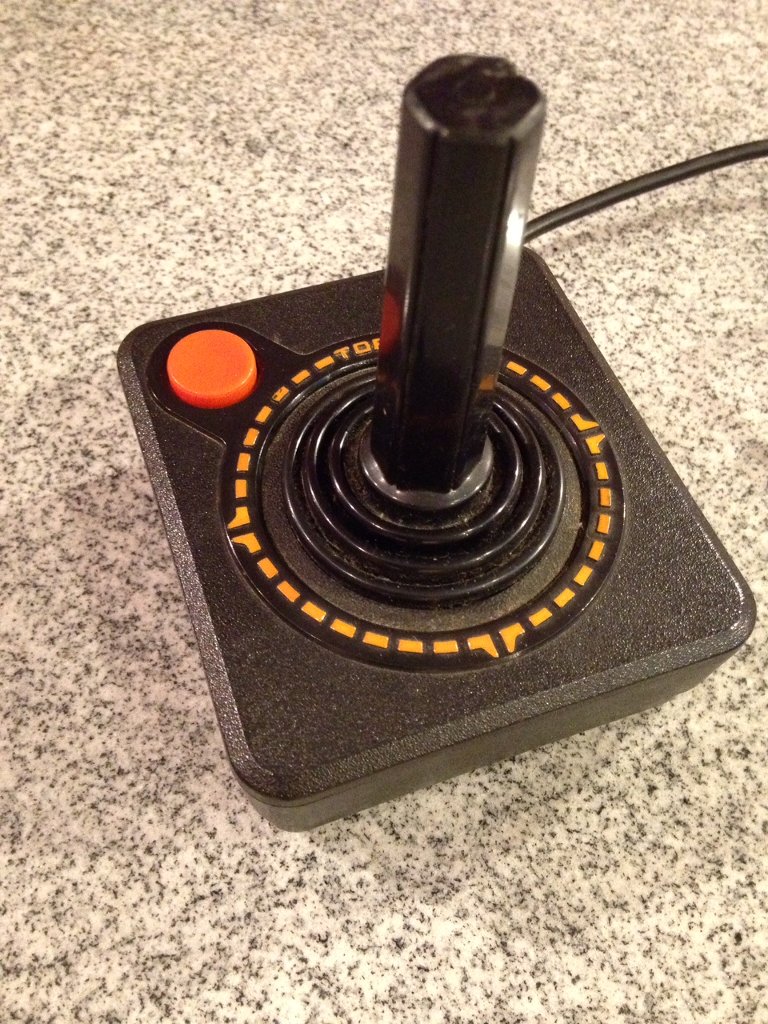

The Victim

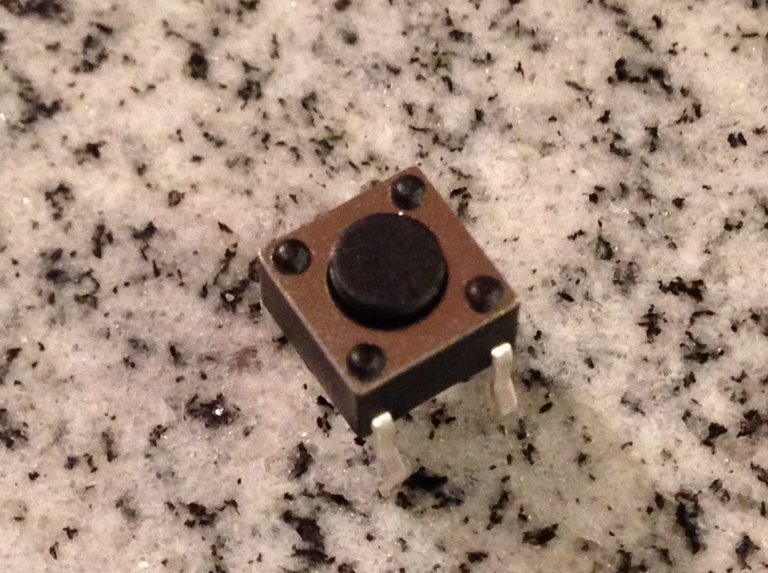

The new Switch

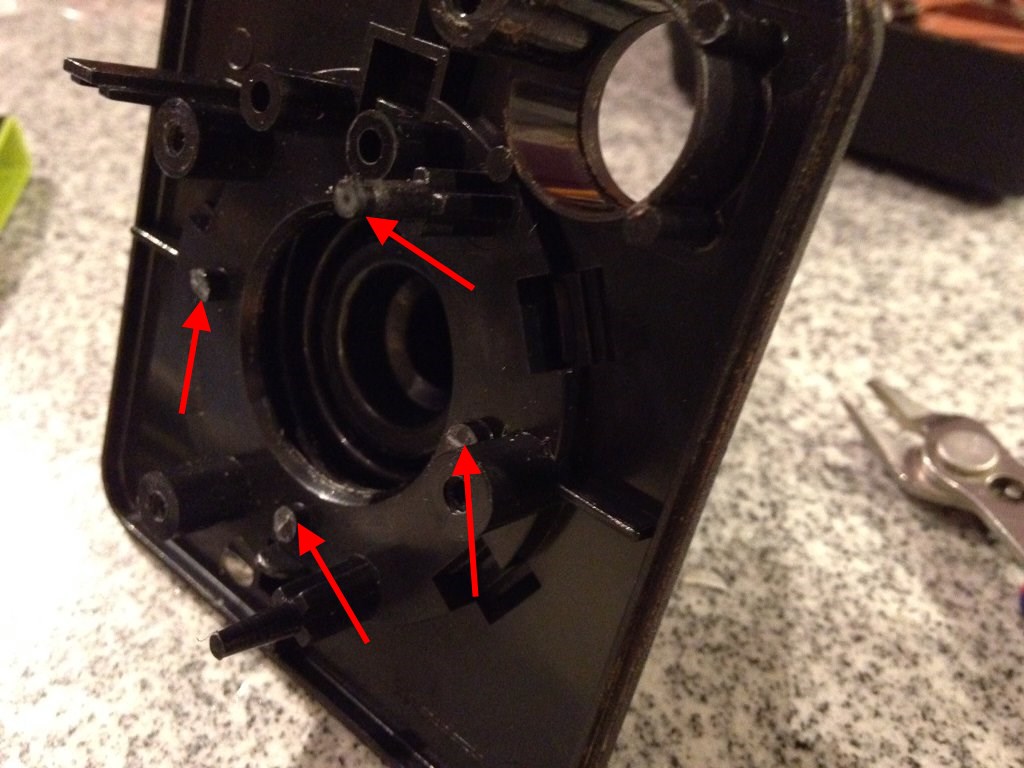

Cutting off little caps to make room for the switches

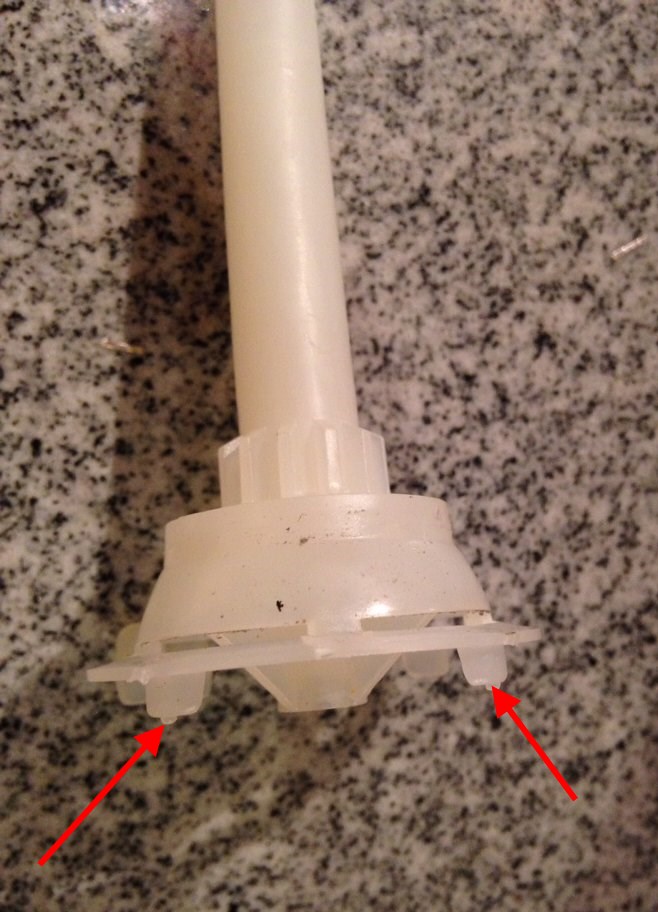

Cut off here too

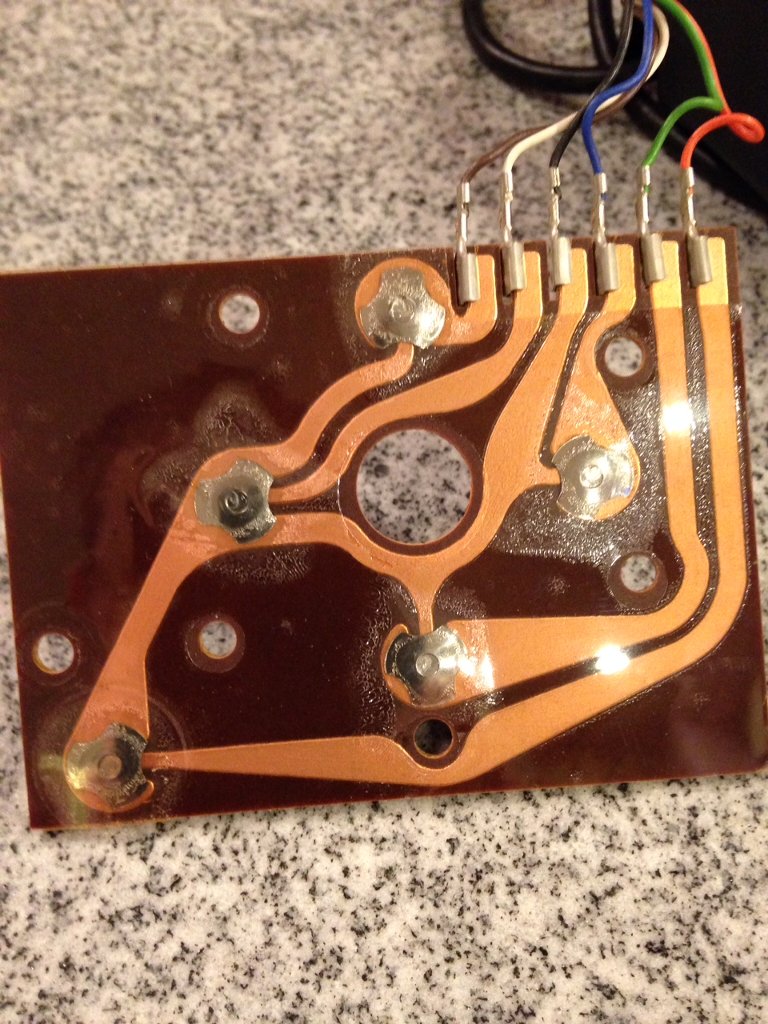

The Original Switches

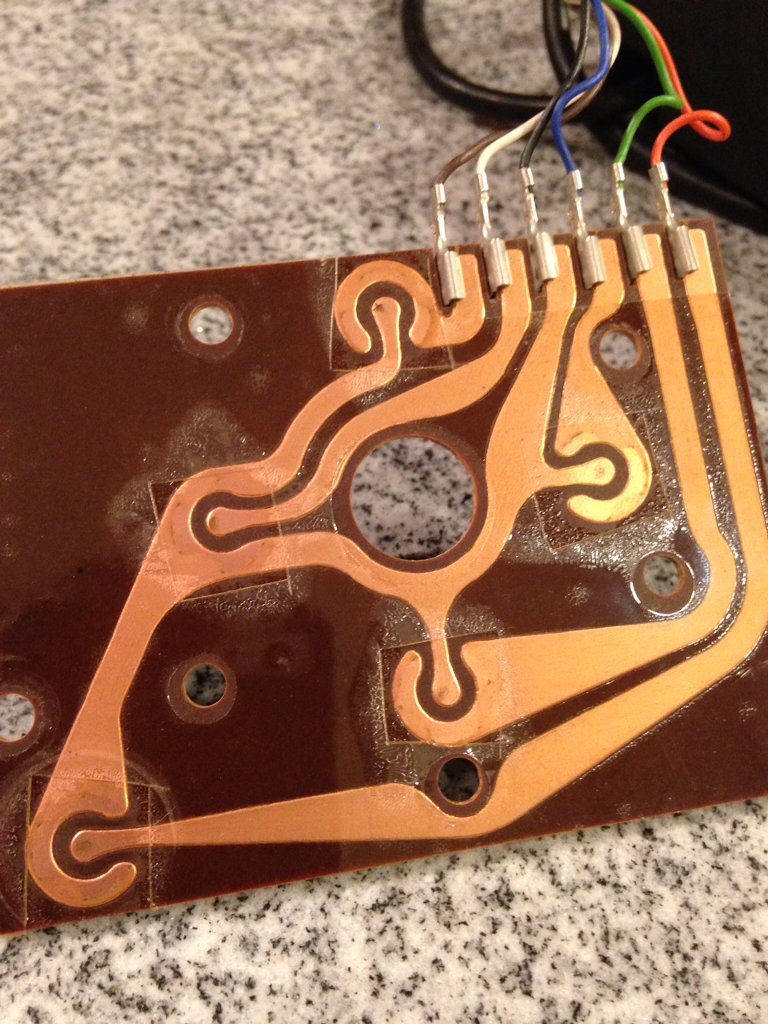

After removing the old switches

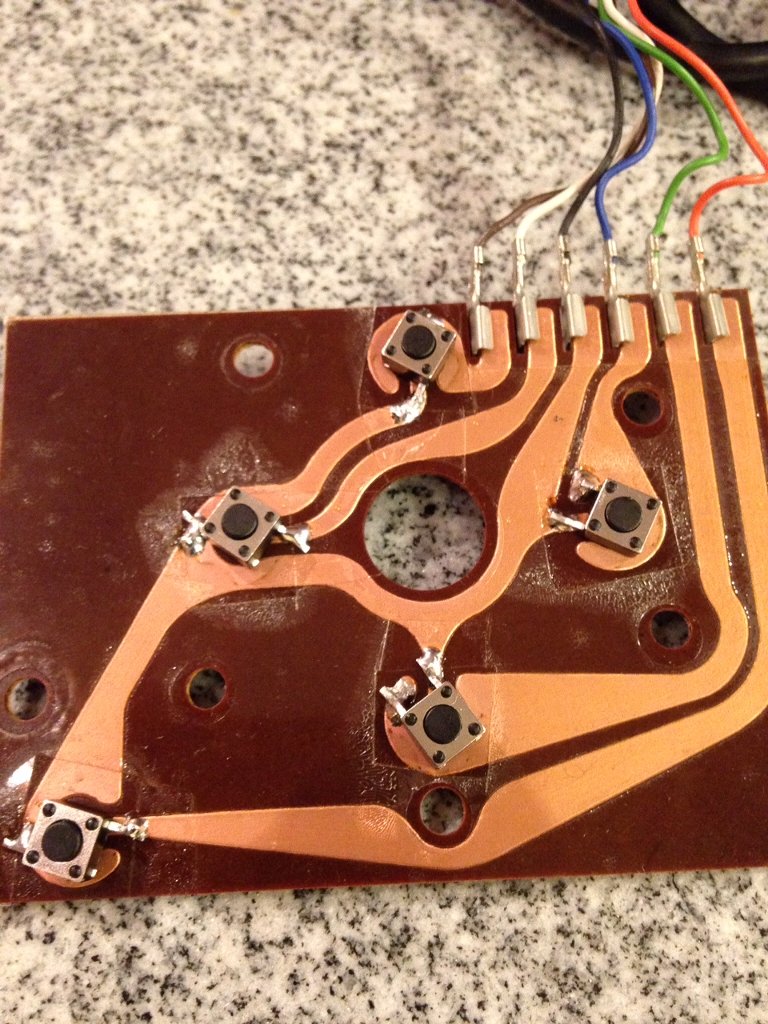

After soldering the new switches
